Ubiquiti Networks UDM UniFi Dream Machine (UDM)

Mfg. SKU: UDM

SKU: 1033520

EAN: 0817882025966

General
Switch type
Managed
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
9
Installed SFP+ modules quantity
2
Networking standards
IEEE 802.1x
DC input voltage
12 V
Rack mounting
Y
Form factor
1U
R 5,598.09 R 4,867.90
Availability: 11-20 pcs.

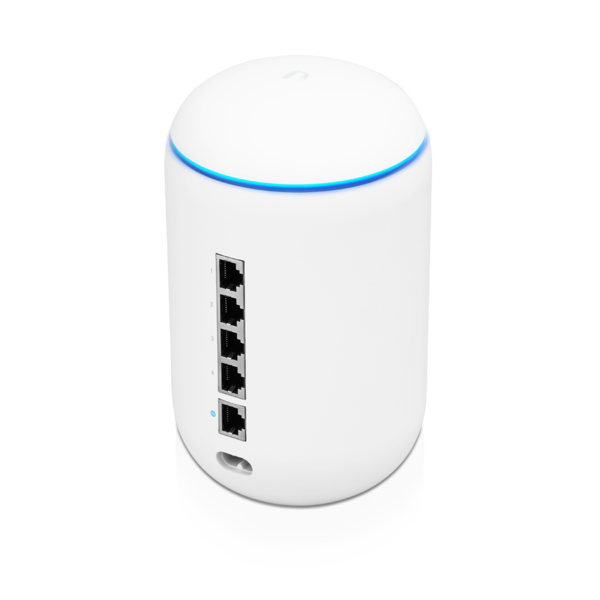

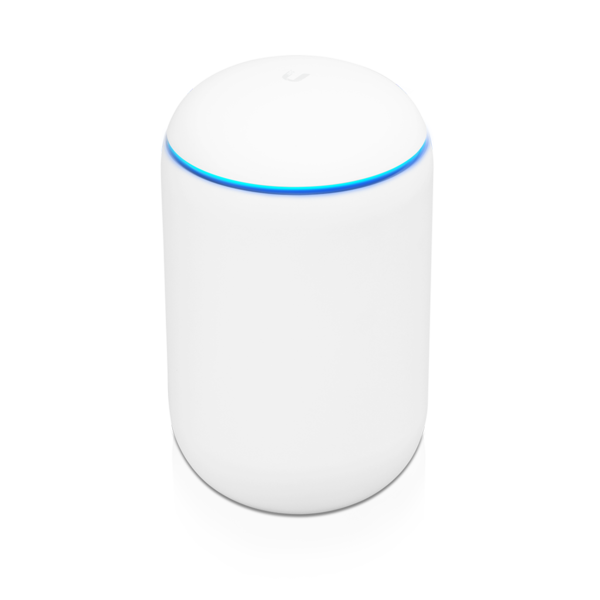

Ubiquiti Networks UDM UniFi Dream Machine

UniFi® Dream Machine

Designed for the UniFi Network application, the UDM offers an intuitive platform for home and enterprise users to build and manage small-scale wired or WiFi networks, monitor device activity, and explore the world of UniFi.

Ubiquiti Networks UDM UniFi Dream Machine

Integrated 4x4 Enterprise AP

The UDM delivers the requisite high‐performance Wi‐Fi and fits into high‐density environments as part of the overall enterprise network.

Integrated Security Gateway

The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).

Integrated Cloud Key

The UniFi Network Application can provision UniFi devices, map out networks, and quickly manage system traffic.

Integrated Gigabit Switch

The UDM provides a managed 4-port Gigabit switch so you can easily add network storage or wired client devices.

Powerful Security

The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).

Automatic QoS

Top QoS priority is assigned to voice and video traffic for clear calls and lag‑free video streaming.

Convenient VLAN Support

The UDM can create virtual network segments for security and network traffic management.

VPN Server for Secure Communications

A site-to-site VPN secures and encrypts private data communications traveling over the internet.

Ubiquiti Networks UDM UniFi Dream Machine
Ubiquiti Networks UDM UniFi Dream Machine

Additional Product Notes

  1. High‑Performance 802.11ac 4x4 Wave 2 Access Point (AP)
  2. Dual-band Wave 2 access point (802.11ac, 4x4)
  3. Managed, 4-Port Gigabit switch
  4. Advanced security gateway with internet threat management and deep packet inspection
  5. Pre-installed UniFi Network application
  6. Powered by a fast, 1.7 GHz quad-core processor
  7. Allows you to easily scale your deployment by connecting additional UniFi devices
  8. Advanced Security Gateway
  9. UniFi Network Controller
Networking Interface Processor System Memory On-Board Flash Storage Dimensions/td>
(4) LAN 10/100/1000 RJ45 Ports
(1) WAN 10/100/1000 RJ45 Port
Arm Cortex-A57 Quad-Core at 1.7 GHz 2 GB DDR RAM 16 GB Ø 110 x 184.2 mm (Ø 4.33 x 7.25")
Design
Rack mounting
Y
Stackable
N
Form factor
1U
Product colour
White
LED indicators
Activity, Link, Speed
Certification
FCC, IC
Management features
Switch type
Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
2
SFP+ module slots quantity
2
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Network
Networking standards
IEEE 802.1x
10G support
Y
Power
Power supply included
Y
Redundant power supply (RPS) support
Y
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
12 V
Power consumption (max)
33 W
Performance
Built-in processor
Y
Processor model
ARM Cortex-A57
Processor frequency
1700 MHz
Memory type
DDR4-SDRAM
Internal memory
4096 MB
Flash memory
16000 MB
Data transmission
Throughput
3.5 Gbit/s
Packaging data
Cables included
AC
User guide
Y
Package type
Box
Rack mount kit
Y
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Operating relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
442.4 mm
Depth
285.6 mm
Height
43.7 mm
Weight
3.9 kg
Technical details
Sustainability compliance
Y
Sustainability certificates
CE
