Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE) (AF-5XHD)

Mfg. SKU: AF-5XHD

SKU: 1016401

EAN: 0817882022828

General
Maximum data transfer rate
1000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
5.150 - 5.250 / 5.740 - 5.850 GHz
Security algorithms
256-bit AES
Input voltage
20 - 50 V
Output voltage
24 V
Output current
1 A
Placement
Wall
Product colour
White
International Protection (IP) code
IP67
Operating system installed
AirOS
R 6,768.61 R 5,885.75
Availability: 11-20 pcs.

Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)

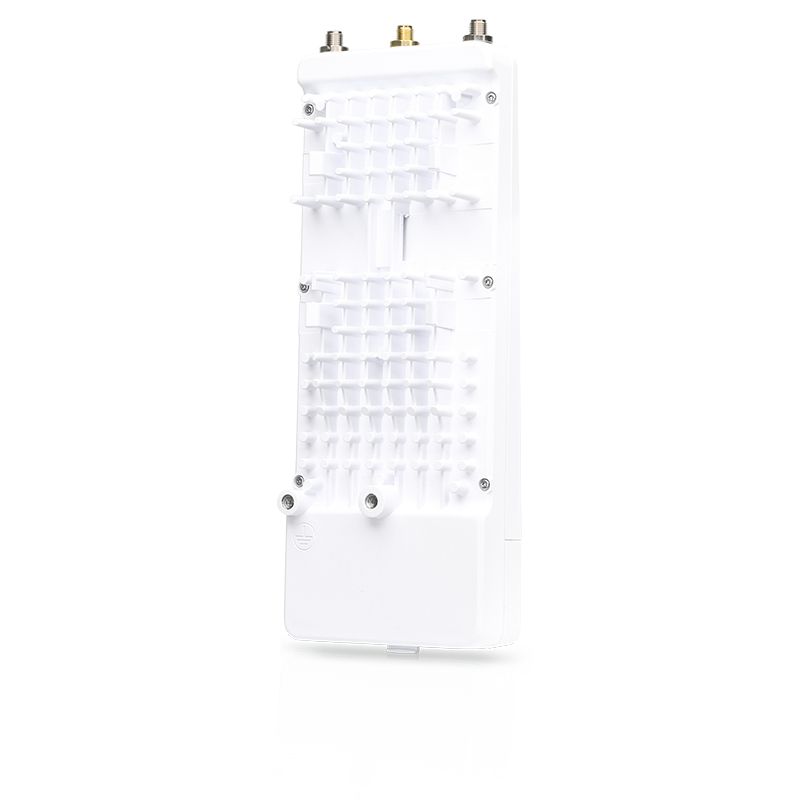

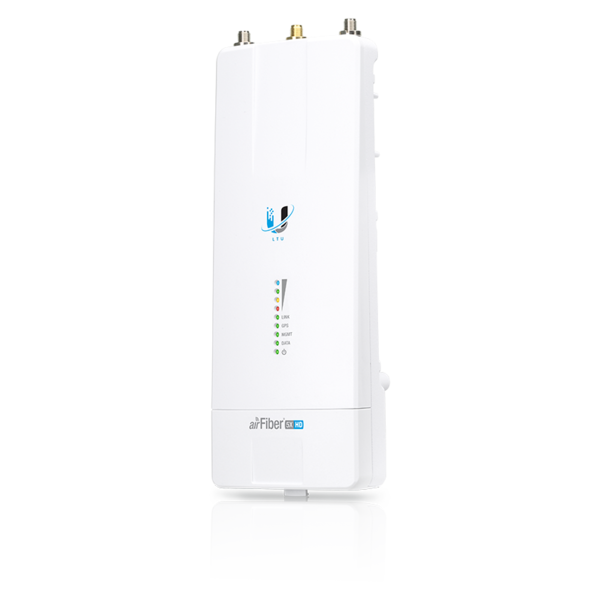

Ubiquiti Networks AirFiber AF-5XHD

Ubiquiti continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber® AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish™ antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection from dust and water.

Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)
Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)

Auto Output Power

Enabled by default, the Auto Output Power option causes the AF-5XHD to set the output power (EIRP) to the appropriate level.

Programmable Transmit Power

The radio's transmit power level can be programmed up to +29 dBm.

Programmable DL/UL Ratio

The AF-5XHD can split downlink and uplink traffic and support asymmetric traffic as needed. DL/UL ratios include 25%, 33%, 50%, 67%, and 75%. The DL/UL Ratio is an essential part of GPS sync functionality; it must be the same in all APs that you wish to synchronize.

Configurable GPS Synchronization

The AF-5XHD offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems, and 5 ms frame length is compatible with airMAX networks.

Split TX and RX Frequency1

The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance.

Split TX and RX Channel Bandwidth

Support for different channel bandwidths for TX and RX allows users to scale required data capacity more efficiently.

Adaptive Modulation up to 4096QAM1

Adaptive modulation rates of up to 4096QAM are supported.

Dual Redundant

Gigabit Ethernet Ports with PoE The AF-5XHD has two Gigabit Ethernet ports that can be used for redundant PoE power.

Bluetooth Wireless Configuration

Use the built-in Bluetooth interface for wireless configuration.

AlignLock™ Antenna Aiming Guard

This alerts the user when the radio or antenna aiming is changed due to tampering, impact, or storm damage.

Redundant Images for Fail-Safe Configuration

Creation of backup firmware images ensures fail-safe configuration and enhances reliability.

Persistent Spectrum Analysis with Dedicated RX

Perform real-time spectral analysis for the full band on live links without interrupting the link operation.

Wide Voltage Range, Enhanced Surge Protection

The AF-5XHD has an operating voltage range of 19-50VDC3 and provides enhanced surge protection.

Additional Product Notes

  1. 1 Gbps+ Throughput
  2. 4096 QAM Modulation
  3. 2 Million+ Packets per Second
  4. Proprietary RF Filtering
Features
5 GHz
Y
Maximum data transfer rate
1000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
5.150 - 5.250 / 5.740 - 5.850 GHz
Channel bandwidth
100 MHz
Modulation
QAM
GPS (satellite)
Y
Maximum outdoor range
200000 m
Transmitting power
29 dBmW
Security
Security algorithms
256-bit AES
Design
Placement
Wall
Product colour
White
International Protection (IP) code
IP67
Certification
FCC
Internal
N
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Weight & dimensions
Width
82 mm
Depth
48 mm
Height
224 mm
Weight
350 g
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Packaging data
Mounting kit
Y
Power
Power over Ethernet (PoE)
Y
Input voltage
20 - 50 V
Output voltage
24 V
Output current
1 A
Power consumption (max)
12 W
Performance
Operating system installed
AirOS
